Test specimens for tribological tests

DIN 51834, ISO 19291, ASTM D5706, ASTM D5707, ASTM D6425, ASTM D7421, ASTM D8316, ASTM D8317 and many others

Prüfkörper für tribologische Tests

Secure your test results by using original test specimens

Professionally manufactured and standardized for SRV ® :
Optimol performance disk (OPD – part no. 291.150.00) and Optimol performance ball (OPB – part no. 291.150.10)

Our OPS are the basis for highly accurate, reproducible test scenarios over many years, ensured by our special quality assurance procedures and certifications. By using Optimol original performance specimens, the risk of unnecessary test repetitions due to inconsistent results is significantly reduced.

to products

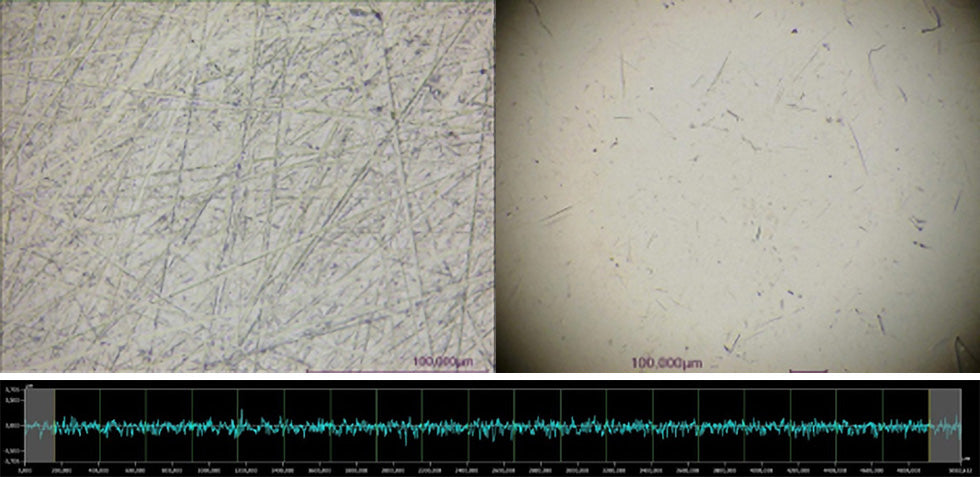

Optical inspection and semi-automated roughness measurement and evaluations.

By optical inspection, we eliminate scratches, rust and other macroscopic damages on the specimen surfaces.

By intensive, semi-automated roughness measurement and evaluations, we assure that the roughness parameters of every batch remain within the specified parameters.

For every batch that leaves Optimol, we verify the hardness of the specimen to assure the consistency with the standard specifications.

On random samples taken from every OPD batch, we carefully check the stability and consistency of the coefficient of friction and resulting wear scar with our reference oil in order to maintain reproducibility.

As our OPD are also reference samples for extreme pressure tests, we verify the pass load of several random samples out of every batch.

We regularly screen the CoF values on different positions on the disk surfaces with special test procedures to ensure the homogeneity of the results on each position of the disk.

Position diagram to document the checkpoints for surface homogenity screenings:

Repeatability

Thanks to our new stable and reliable production process as well as our intensive quality assurance procedure, the repeatability of the results is extremely precise.

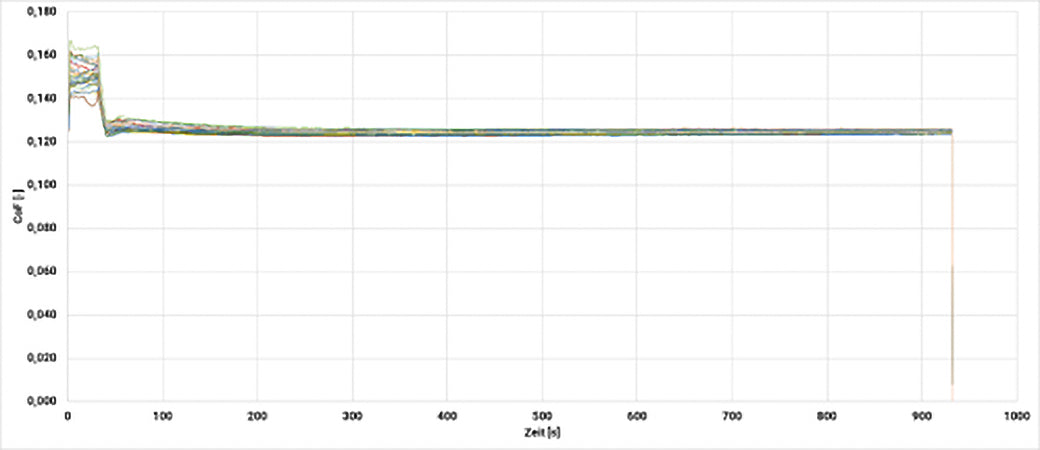

Diagram of more than 30 quality assurance tests of our OPD as proof of a constant repeatability of 95 %:

We guarantee the traceability of every batch through our Optimol quality assurance database. Each batch is registered and gets an explicit batch number allowing us to trace the history of every single OPS batch.

With every pack of OPS an individual certificate is provided, including most important specifications like hardness and roughness values, CoF for the reference run and validity.
